Homemade brick smoker plans?

1,834 Views | 16 Replies | Last: 4 mo ago by Mr. Frodo
marcel ledbetter
How long do you want to ignore this user?
I've been tasked with building a brick and mortar smoker on a rural property for a local pastor. It needs to be large enough to smoke a whole hog, or at least six whole hog legs. Does anyone on the board have proven plans or ideas that I might duplicate?

I have plenty of brick, mortar and masonry expertise at my disposal.

Any ideas, or links to plans would be appreciated! I like the direct heat option right now as I can make it serve as a grill, or pizza oven. Offset plans would be worth looking at also.

thanks in advance!

HTownAg98
How long do you want to ignore this user?
Find a church in a small community. One is bound to have a brick cooker. They're built relatively simple with a grate about 28" high with a cover made with corrugated sheet metal tied to metal pipe (let's set aside the fact that galvanized metal, heat, and food aren't a good combination), and holes every 3'-4' to shovel in coals. They aren't complicated.
oh no
How long do you want to ignore this user?
AG
Suggest asking ChatGPT, grok, and any other AI engines with all your specific requirements. Post their plans and let this board critique them.
RCR06
How long do you want to ignore this user?
AG
There is a poster that lives in South America somewhere that built one of these in the last year(I think).
marcel ledbetter
How long do you want to ignore this user?
That's me. I slapped that smoker together in an afternoon. It works well but isn't very user friendly. The one I need to make will need to be more user friendly.
TRIDENT
How long do you want to ignore this user?
AG
tx4guns made one for his church recently and it worked very well
marcel ledbetter
How long do you want to ignore this user?
Thanks! Is there a post about his build?
Missouri Boat Ride
How long do you want to ignore this user?
AG
check behind a Czech fraternal hall like a Knight of Columbus, KJT, SOKOL, or even a local VFW. Plenty of fine examples of ranch engineering to be found there. Like steel pits, the geometries are important to get it to flow properly. I dont have any "plans" per se of either unfortunately.
TRIDENT
How long do you want to ignore this user?
AG
marcel ledbetter said:

Thanks! Is there a post about his build?

I just sent him a text
tx4guns
How long do you want to ignore this user?
AG
We did a 100lb hog for our church back in August. This is a temporary setup, but it worked well.

Tips:

Keep plenty of coals under it. We went too slow at first, and had to play catchup at the end.

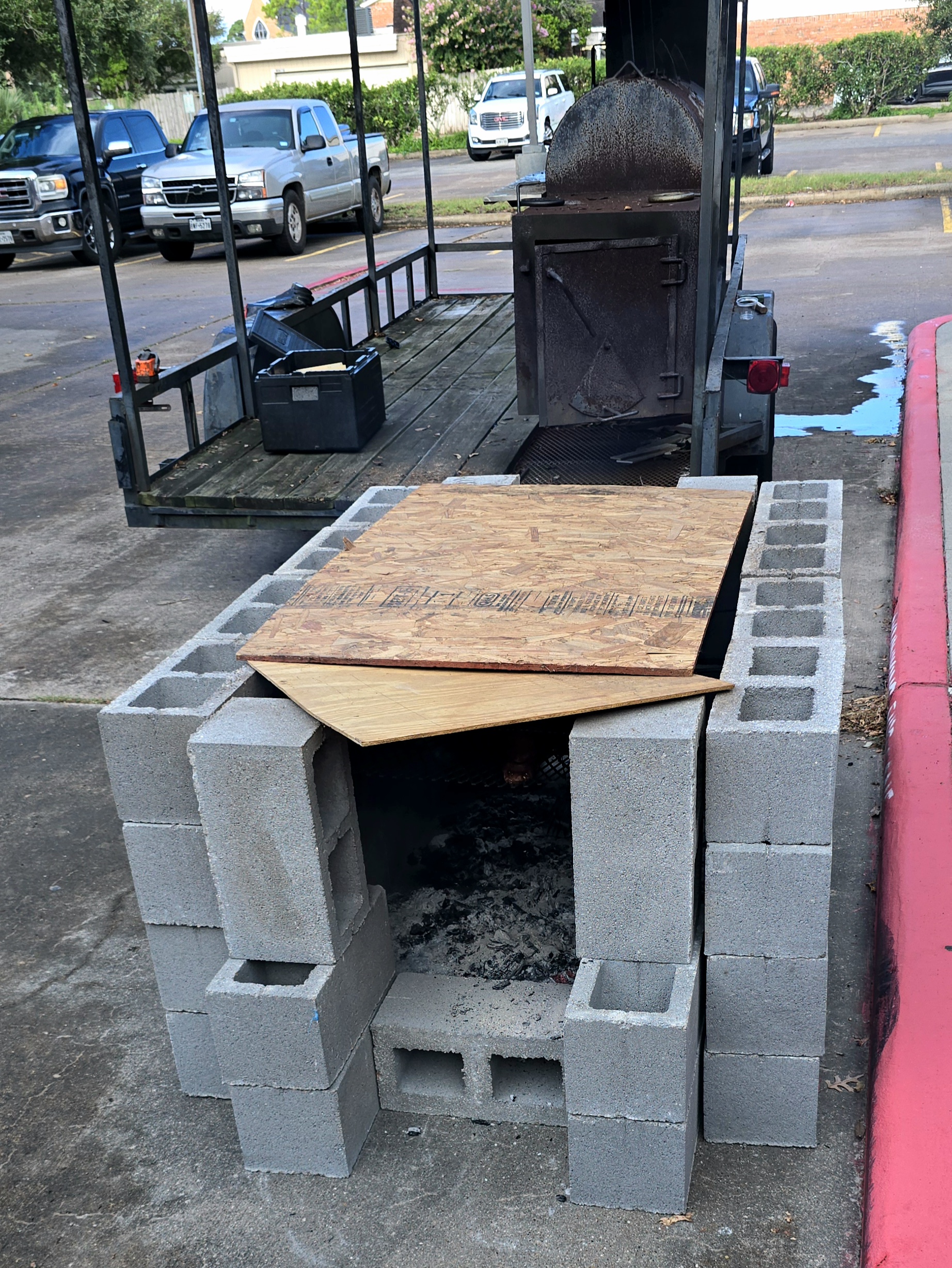

Get a good lid. We used some plywood, but a fitted sheet metal lid with handles would have done better.

Have wind breaks or doors for the ends to prevent too much wind blowing in to cool your coals off. It's more of a roaster oven than a pit.

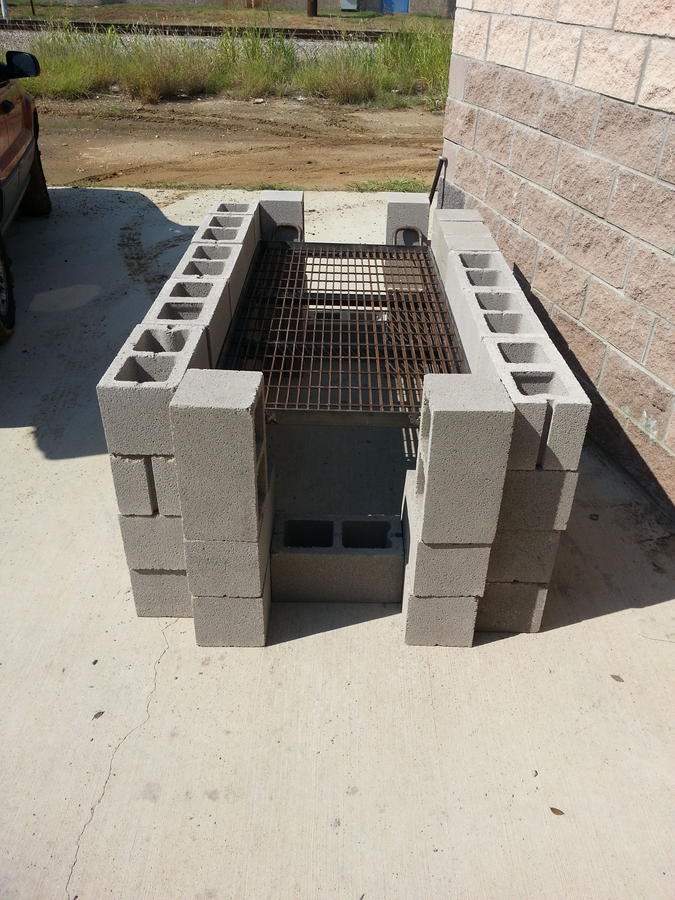

I used this picture as a template:

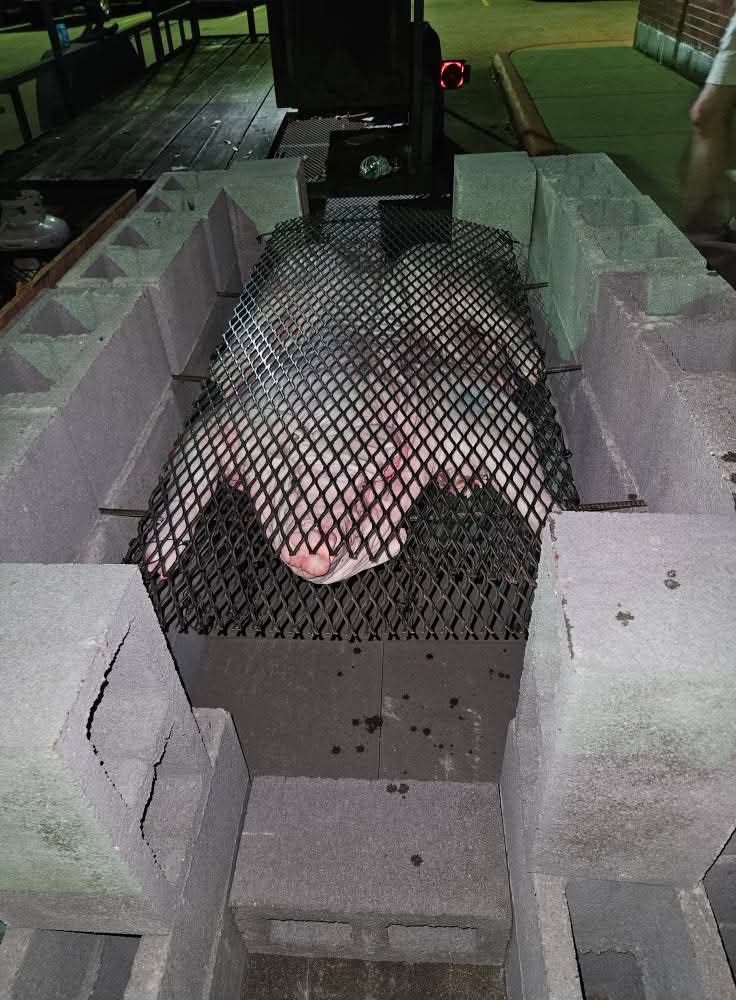

This is what we ended up with:

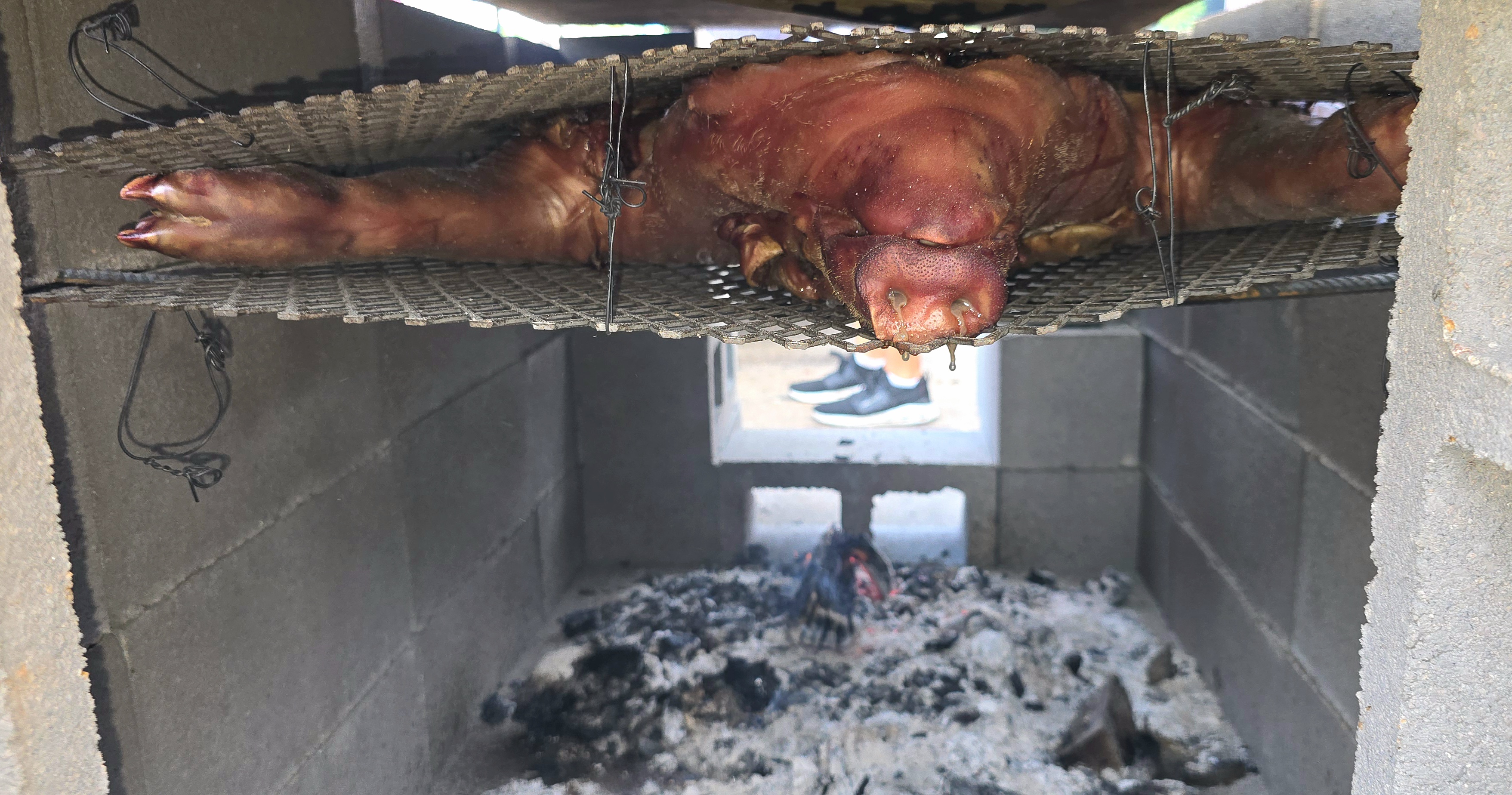

I used rebar tie wire and the tool to wire the pig between 2 sheets of expanded metal. All washed with soap to remove oil. I used the wire to tie some handles onto the metal so we could flip it. The 100lb pig took about 10 hours to cook to 170 internal temp. You only want coals under the rear and front. The ribs are thin and will burn. Only spice I used was kosher salt. Give it a good rub down. It was delicious and tender. Bones pulled out.





BlueSmoke
How long do you want to ignore this user?
Dad and I built one back in the day at our place. Repurposed a bunch of bricks from Thurber and other places g-father had in piles.

It's basically a big, brick box with a smaller firebox on the side with a chimney on the far end. Metal doors and a large metal lid with a counterweight with single large grate to put stuff on. Smaller slides on the firebox near the base to help with airflow.

User it more as a direct heat source for steaks, etc than smoking. Did a few pork shoulders and ribs. It's all mesquite wood out there, so it's just the same flavor from post oak, etc.. Not a big fan, but great for grilling.
BlueSmoke
How long do you want to ignore this user?
tx4guns said:

We did a 100lb hog for our church back in August. This is a temporary setup, but it worked well.

Tips:

Keep plenty of coals under it. We went too slow at first, and had to play catchup at the end.

Get a good lid. We used some plywood, but a fitted sheet metal lid with handles would have done better.

Have wind breaks or doors for the ends to prevent too much wind blowing in to cool your coals off. It's more of a roaster oven than a pit.

I used this picture as a template:



This is what we ended up with:





I used rebar tie wire and the tool to wire the pig between 2 sheets of expanded metal. All washed with soap to remove oil. I used the wire to tie some handles onto the metal so we could flip it. The 100lb pig took about 10 hours to cook to 170 internal temp. You only want coals under the rear and front. The ribs are thin and will burn. Only spice I used was kosher salt. Give it a good rub down. It was delicious and tender. Bones pulled out.







Saw a YT video from Aaron Franklin who did something similar to that - looked fantastic when it was done
TRIDENT
How long do you want to ignore this user?
AG
The apple in the pigs mouth is a critical step not to miss
Mr. Thunderclap McGirthy
How long do you want to ignore this user?
AG
tx4guns said:

We did a 100lb hog for our church back in August. This is a temporary setup, but it worked well.

Tips:

Keep plenty of coals under it. We went too slow at first, and had to play catchup at the end.

Get a good lid. We used some plywood, but a fitted sheet metal lid with handles would have done better.

Have wind breaks or doors for the ends to prevent too much wind blowing in to cool your coals off. It's more of a roaster oven than a pit.

I used this picture as a template:



This is what we ended up with:





I used rebar tie wire and the tool to wire the pig between 2 sheets of expanded metal. All washed with soap to remove oil. I used the wire to tie some handles onto the metal so we could flip it. The 100lb pig took about 10 hours to cook to 170 internal temp. You only want coals under the rear and front. The ribs are thin and will burn. Only spice I used was kosher salt. Give it a good rub down. It was delicious and tender. Bones pulled out.







Crap!!! Now I'm hungry again.
In Hoc Signo Vinces
marcel ledbetter
How long do you want to ignore this user?
Thanks! That's similar to the one I made a couple months ago. What were the dimensions for that pit? I like the expanded metal wired over the pig to make it easy to flip.
tx4guns
How long do you want to ignore this user?
AG
The cinder blocks are 16x8x8, so the actual cooking area was ~48x32. The expanded metal was ~48x24 I think.
Mr. Frodo
How long do you want to ignore this user?
AG
