Intermittent large oil leak?

573 Views | 7 Replies | Last: 22 hrs ago by BrazosDog02
P.H. Dexippus
How long do you want to ignore this user?
AG
Any educated guesses as to how a significant oil leak could appear and then disappear?

I have a 2006 5.4L Mark LT (Ford F-150) with 300k miles. I garaged it in the beginning of 2025 after a filter and full synthetic oil change. I pulled it back out a year later for DD duty, which it handled without a hitch for two months. There were no apparent leaks while garaged or during its return to service.

One 45F morning six weeks ago, it suffered a sudden loss of power during a 10 minute commute. It began running rough and the dash lit up like a christmas tree, eventually stalling out in the middle of a busy intersection. I was able to restart it 4-5x but it would die again when trying to give it throttle in gear. It finally wouldn't even start. I was able to get it into neutral and coast it downhill it into a private drive to await a tow truck. Within a few hours of getting it home, it had puked quite a bit of fluid (which I assumed was oil) into the street in the area of the front axle. I thought the truck was toast so out of frustration I kept putting off getting around to taking a look at it. I assumed I was going to be donating it.

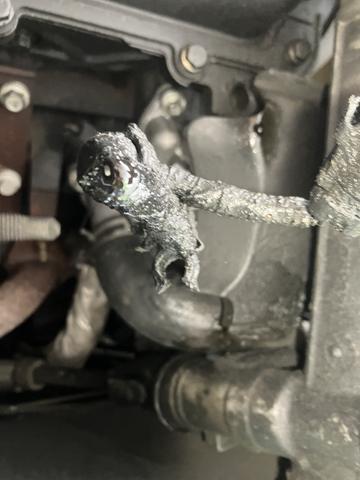

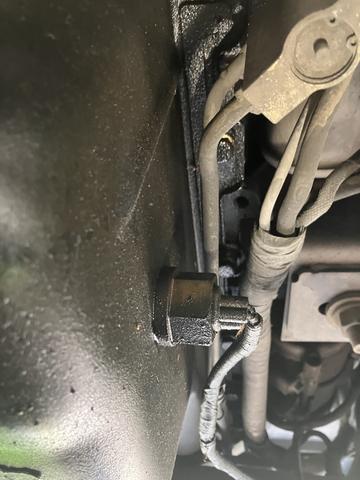

Today I take a look. There's no appearance of a leak around the oil filter or filter adapter housing. Nothing from the topside or front of the engine either. The pan bolts have wet oil on them but no active dripping. There's also a loose/dangling wire harness attached to the oil pressure sending unit that was covered in oil, but I suspect this is from a history of getting oil poured on it during filter changes. The coolant degas bottle is still full.

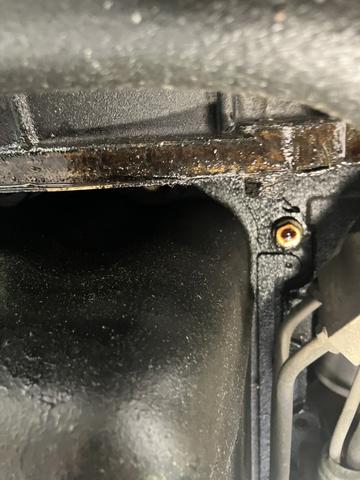

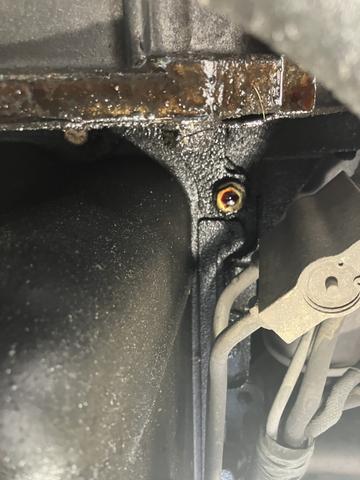

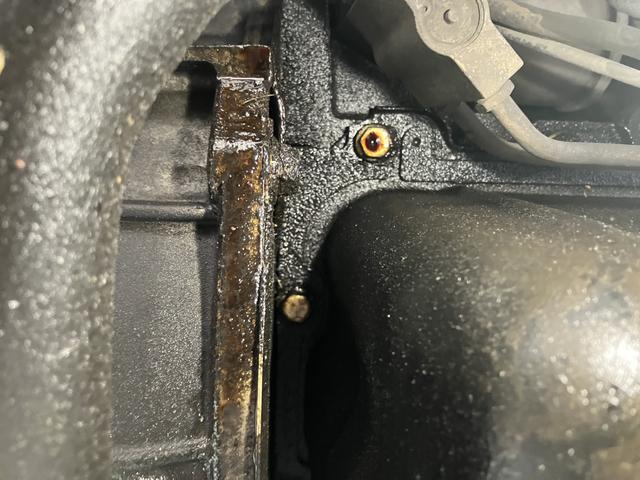

I do an oil and filter change, and find that it is 2qt low (5 instead of 7). I confirmed there was not a second oil filter gasket present. The battery had gone completely dead (was not able retrieve prior OBD2 codes). I was able to recharge the battery, and the truck in running like a top. I drove it about 15 miles around town, running errands, idling, getting on it, no problems. No new codes pop up. Also, no leaks. I got under it while running and there were zero drips, just the same wet oil appearance around the oil pan gasket.

So I assume I have an oil pan gasket leak. But how does that explain the sudden loss of power and significant oil spill? And why would everything appear fine now and zero active leaks? What happened to the pathway that poured oil only weeks before?





sts7049
How long do you want to ignore this user?
AG
i think you have two different problems. i dont think the oil had anything to do with the stumbling and lights on the dash. unfortunately if you have no codes and no other clues (eg low coolant, MPG way down, fouled plugs) gonna be difficult to know what caused it.
TexasRebel
How long do you want to ignore this user?
AG
Slow case drains, maybe?

Oil gets pumped up, but cannot return to the sump fast enough so it pushes out of the vents.

What weight oil did you use?
P.H. Dexippus
How long do you want to ignore this user?
AG
I've run 5W30 for the past decade
tree91
How long do you want to ignore this user?
AG
This is a good one.

Did it make any loud hammering noises when the problem occurred? Had you plugged the sensor wire back in prior to it running well again?
P.H. Dexippus
How long do you want to ignore this user?
AG
No loud or unusual noises other than just running very rough. At first I thought it might be an ignition coil gone bad, but I've experienced that before and while it reduces power and roughens idle, this was magnitudes worse.

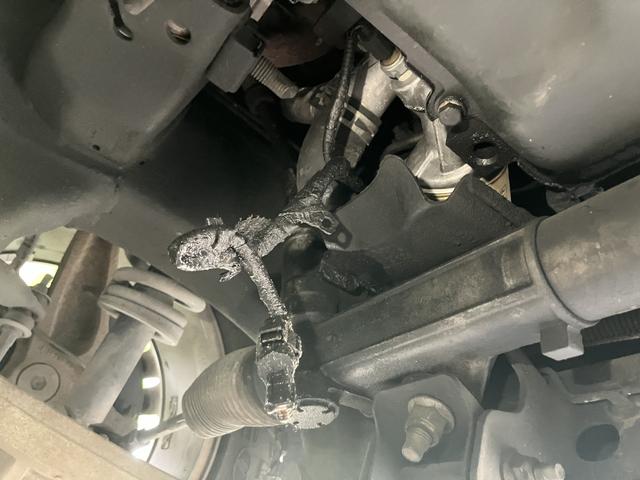

Even though wires are hanging down, the sending unit is still plugged in. Something (or some lube tech) pulled the fasteners that hold the harness in place from their mounting holes, which I have not been able to locate.
dodger02
How long do you want to ignore this user?
AG
I had an '05 F-150 with the 5.4L.

I experienced the loss of power issue you described. It was the fuel rail on one side. It's been a minute, but I think it was a recall or TSB item. I had it towed and one of the fuel rails replaced and that fixed it.

That's my guess plus the oil pan gasket.
BrazosDog02
How long do you want to ignore this user?
AG
Oil pan gasket leak.

Replace it when it bugs you enough. Ain't hurtin' nuthin. It's a self maintaining undercarriage rust inhibitor.

Front axle puke could be a failing oil filter adapter gasket if we're on the drivers side.

Kind of a ***** to replace both of those on the ground. Pan gasket leak I wouldn't care about but the other is worth keeping an eye on. When it fails, if that's the issue, it will be a sizable leak.
